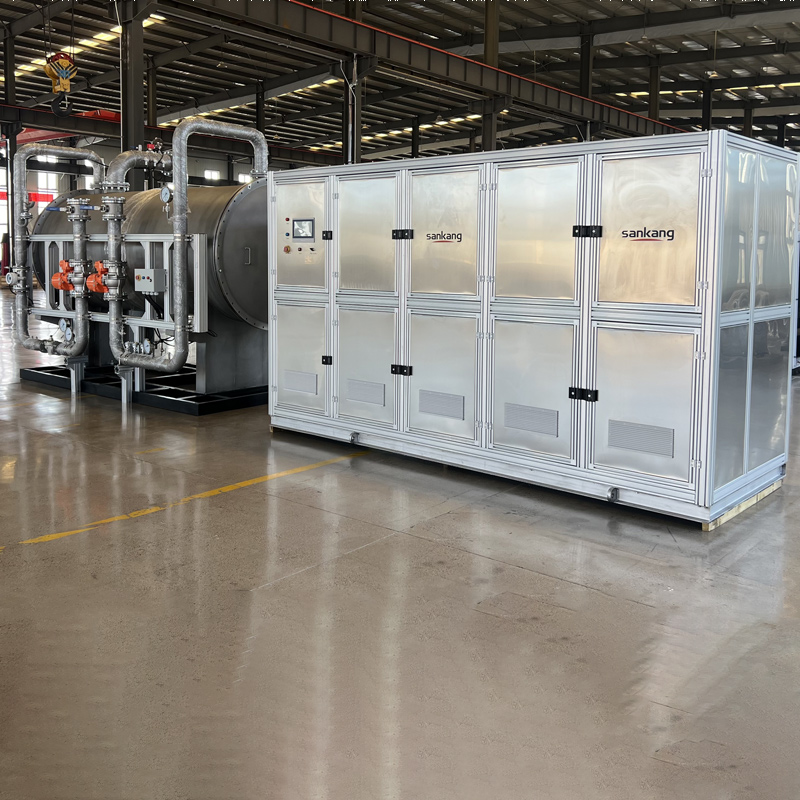

SanKang 90kg/h Ozone Generator
Differentiation of Sankang Ozone System from Other Products
(1) Sankang ozone power supply and transformer adopt full air cooling mode, which can effectively avoid condensation of electrical components in domestic coastal areas and high temperature and high humidity environments, protect electrical safety, be more energy-saving and environmentally friendly, and facilitate installation and maintenance.
(2) Sankang ozone generation chamber is designed in accordance with Class I pressure vessel standards; the auxiliary pipeline design is simple and beautiful; the instrumentation adopts domestic well-known brands; the flow meter adopts the current mainstream product metal tube float flow meter, LCD display, easy to operate; the valve adopts electric mode switch adjustment, easy to purchase and maintain, and simple to control; the ozone equipment pipeline interface adopts on-site installation mode, which is convenient for users to use on site.
(3) The internal use of fully insulated intelligent repairable electrodes has good stability, low voltage, maintenance-free, safer, more reliable and more advanced;
(4) The ozone concentration can reach 12wt% (gas source is liquid oxygen), which is higher than the ozone conversion rate of other ozone manufacturers (8-10wt%);
(5) The ozone detection instrument has a range of 0-200g/m³.
The discharge body is arranged in a honeycomb pattern inside, ensuring the normal, reliable, and effective operation of the discharge chamber as a whole.
Ozone power supply device
The electricity generated by the ozone generator for producing ozone is provided by the power cabinet of the ozone system. The power cabinet of the ozone generator converts conventional voltage and frequency into the frequency and voltage required to generate ozone. The high-voltage power output from the power cabinet is connected to the high-voltage electrode of the ozone generator gas source inlet chamber through a special high-voltage cable and a specially designed high-voltage connector.
Sankang's power cabinets apply the most advanced power and electronic technologies in the world today, and are constantly developing new technologies based on the development of global power electronics technology.
Sankang is a manufacturer that independently designs, produces, and assembles high-frequency power systems for ozone generators.
(1) High frequency, high-power, high-voltage power supply
Our company's high-frequency, high-power, and high-voltage power supply for ozone generators utilizes the world's most advanced power electronics technology and uses high-power electronic power devices. While meeting the general needs of customers, the extended design can flexibly meet their personalized and special industry requirements. At the same time, we use a high-end digital signal processor to accurately measure and control the power supply, enabling our company's ozone generator products to achieve advanced performance in high-frequency, high-power, and high-voltage power supply. This power supply has anti bounce performance beyond similar products and the ability to use harsh power grids, temperatures, and dust, with full protection function. It has extremely high security and reliable operation.
(2) Step up transformer
Used for transmitting power and matching the output of electronic power circuits with the generator, the requirements for its parameters are different from those of ordinary transformers. Due to the fact that the load not only varies greatly in numerical values throughout the entire working process, but also changes in its characteristics with different states during ignition or normal operation, it is required that the transformer has a certain leakage inductance to balance the above changes and protect electronic components. Leakage inductance can easily cause circuit losses and generate instantaneous high voltage during commutation, so its size needs to be selected according to the load situation. At the same time, the initial stage should have an appropriate number of taps to meet the impedance matching requirements during equipment adjustment. The power supply can only output maximum power when the impedance reflected by the load through the transformer to the primary is equal to the internal resistance of the power supply.
Parameters
1. Makers SANKANG
2. Country of origin China
3. Model SK-CFG-90KE
4. Design ozone production (kg/h) 90Kg/h
5. Ozone effluent concentration (mg/L) 125-148（8-10%wt）
6. Operating pressure (bar) 0.95, with a permissible fluctuation range of 5%
7. Electricity consumption for ozone generator operation (kW-h/kgO3 ) ≤7 kW-h/kgO3 at 25°C for cooling water
8. Generator installed power (kw) 630kw
9. Cooling water flow (m3 /h) 180m3 /h
10. Cooling water pressure (bar) 2bar
11. Ozone generator external dimensions (mm)
Ozone Generator Approx 4000×2276×3310mm
PSU 3200×1500×2300mm
12. Interface Size Air port DN125, Water Port DN150
13. Power supply 380V, 50Hz, 3ph
