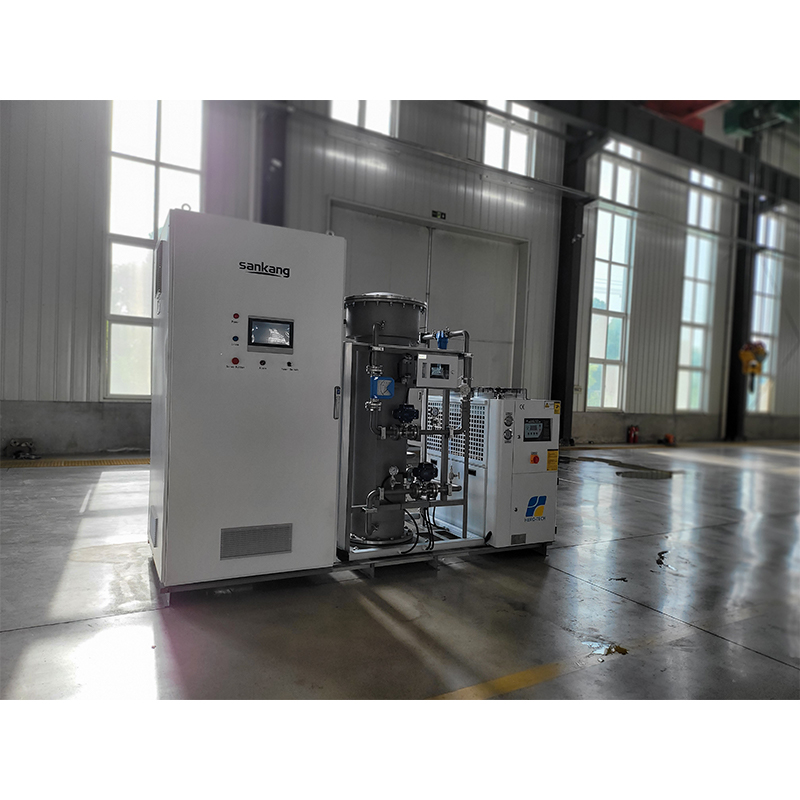

SanKang 3kg/h Ozone Generator

1.Sankang ozone power supply is a high-frequency power supply dedicated to ozone, with a small overall size and space saving; it uses active rectification technology to greatly improve the power factor, reduce line loss, save energy, reduce grid harmonic pollution, and improve the power supply quality of ozone power supply;2. Sankang ozone dielectric material is high borosilicate glass tube, with an expansion coefficient of 4.0, strong acid and alkali resistance, dielectric constant>6, and almost zero dielectric loss; the discharge assembly has double insulators, double air gaps, intelligent discharge, self-repair, and low voltage;

Contact Now E-Mail Telephone WhatsApp

Product Details

Product advantages

1. The specialized power supply for the Sankang ozone generator is a high-frequency power supply for ozone, with a small overall size and saving space; Using active rectification technology to significantly improve power factor, reduce line losses, save energy, reduce harmonic pollution in the power grid, and improve the quality of ozone power supply;

2. The dielectric material of the Sankang ozone generator is high borosilicate glass tube, with an expansion coefficient of 4.0, strong resistance to acidity and alkalinity, a dielectric constant greater than 6, and almost zero dielectric loss; The discharge always consists of double insulators and double air gaps, intelligent discharge, self-healing, and low voltage;

3. In the PSU of the Sankang ozone generator, the transformer is designed according to the anti magnetic skeleton, with no magnetic field radiation, and the cabinet and rack do not generate heat, interfere with, or pollute other electrical equipment in the same room; The reactor is designed according to the hollow concept, effectively dissipating the heat generated by itself, extending its service life, and ensuring long-term stable operation.

4. The ozone concentration can reach 12% wt (with liquid oxygen as the gas source), which is higher than the ozone conversion rate of other ozone manufacturers (8% -10% wt), effectively reducing the operating costs of users;

5. The ozone generator is designed according to the American ASME standard, which is more reliable, safe, and practical.

6. Ozone detection instruments are fully imported, with a range of 0-300g/m ³

Parameters

1. Makers SANKANG

2. Country of origin China

3. Model SK-CFG-3KE

4. Design ozone production (kg/h) 3Kg/h

5. Ozone effluent concentration (mg/L) 125-148（8-10%wt）

6. Operating pressure (bar) 0.95, with a permissible fluctuation range of 5%

7. Electricity consumption for ozone generator operation (kW-h/kgO3 ) ≤7.5 kW-h/kgO3 at 25°C for cooling water

8. Generator installed power (kw) 22.5kw

9. Cooling water flow (m3 /h) 10m3 /h
