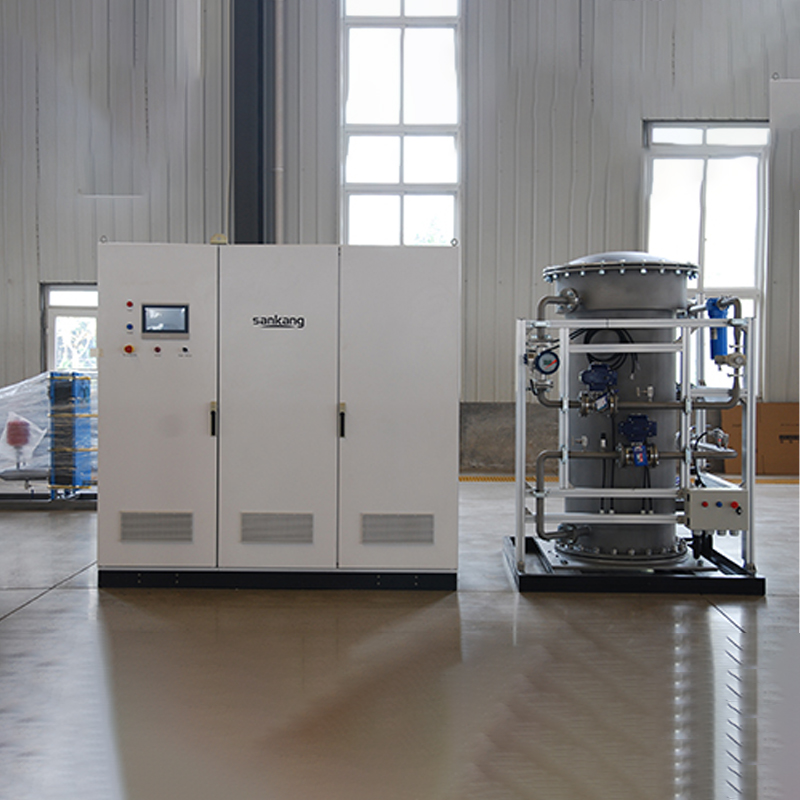

SanKang 12kg/h Ozone Generator
1. The Sankang ozone power supply and transformer adopt a fully air-cooled cooling mode, which can effectively avoid condensation of electrical components in coastal areas and high temperature and humidity environments in China, protect electrical safety, be more energy-efficient and environmentally friendly, and facilitate installation and maintenance.
2 . The Sankang ozone generation room is designed according to the Class I pressure vessel standard; The auxiliary pipeline design is simple and beautiful; The instruments and meters adopt well-known domestic brands; The flowmeter adopts the current mainstream product metal tube float flowmeter, with LCD display and easy operation; The valve adopts electric mode switch adjustment, which is easy to purchase and maintain, and the control is simple; The ozone equipment pipeline interface adopts on-site installation mode, which is convenient for users to use on site.
3. Internally using fully insulated intelligent repair electrodes, with good stability, low voltage, maintenance free, safer, more reliable, and more advanced;
4. The ozone concentration can reach 12wt% (with liquid oxygen as the gas source), which is higher than the ozone conversion rate of other ozone manufacturers (8-10wt%);
5. The range of the ozone detection instrument is 0-200g/m ³.
Product advantages
1. The specialized power supply for the Sankang ozone generator is a high-frequency power supply for ozone, with a small overall size and saving space; Using active rectification technology to significantly improve power factor, reduce line losses, save energy, reduce harmonic pollution in the power grid, and improve the quality of ozone power supply;
2. The dielectric material of the Sankang ozone generator is high borosilicate glass tube, with an expansion coefficient of 4.0, strong resistance to acidity and alkalinity, a dielectric constant greater than 6, and almost zero dielectric loss; The discharge always consists of double insulators and double air gaps, intelligent discharge, self-healing, and low voltage;
3. In the PSU of the Sankang ozone generator, the transformer is designed according to the anti magnetic skeleton, with no magnetic field radiation, and the cabinet and rack do not generate heat, interfere with, or pollute other electrical equipment in the same room; The reactor is designed according to the hollow concept, effectively dissipating the heat generated by itself, extending its service life, and ensuring long-term stable operation.
4. The ozone concentration can reach 12% wt (with liquid oxygen as the gas source), which is higher than the ozone conversion rate of other ozone manufacturers (8% -10% wt), effectively reducing the operating costs of users;
5. The ozone generator is designed according to the American ASME standard, which is more reliable, safe, and practical.
6. Ozone detection instruments are fully imported, with a range of 0-300g/m ³
Parameters
1. Makers SANKANG
2. Country of origin China
3. Model SK-CFG-12KE
4. Design ozone production (kg/h) 12Kg/h
5. Ozone effluent concentration (mg/L) 125-148（8-10%wt）
6. Operating pressure (bar) 0.95, with a permissible fluctuation range of 5%
7. Electricity consumption for ozone generator operation (kW-h/kgO3 ) ≤7 kW-h/kgO3 at 25°C for cooling water
8. Generator installed power (kw) 84kw
9. Cooling water flow (m3 /h) 24m3 /h
10. Cooling water pressure (bar) 2bar
11. Ozone generator external dimensions (mm)
Ozone Generator Approx 1400×1400×2150mm
PSU 1600×1200×2200mm
12. Interface Size Air port DN40, Water Port DN65
13. Power supply 380V, 50Hz, 3ph
Application area
Sankang 10kg/h ozone generator is widely used in sewage treatment, industrial oxidation drinking water treatment, Denox field and other fields
