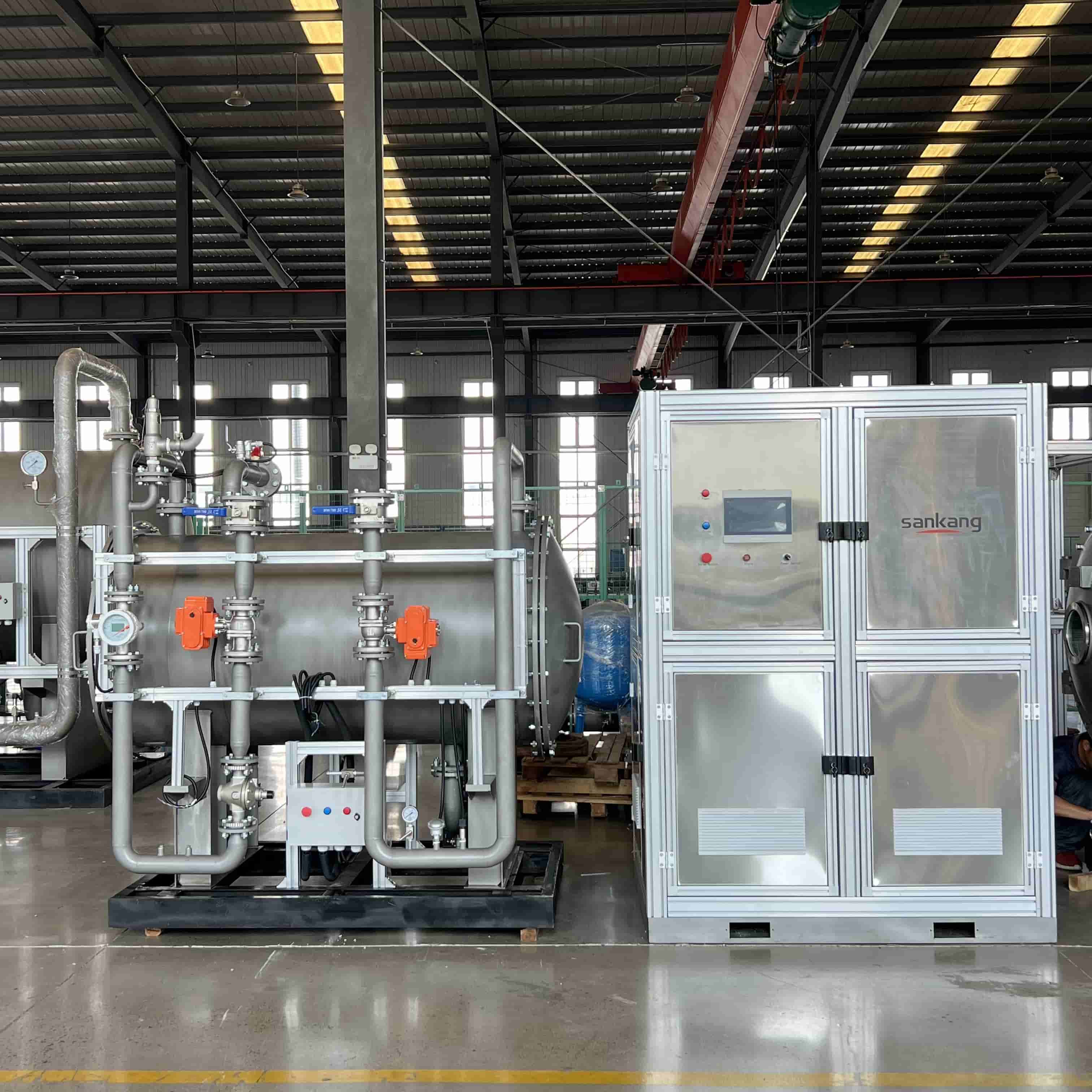

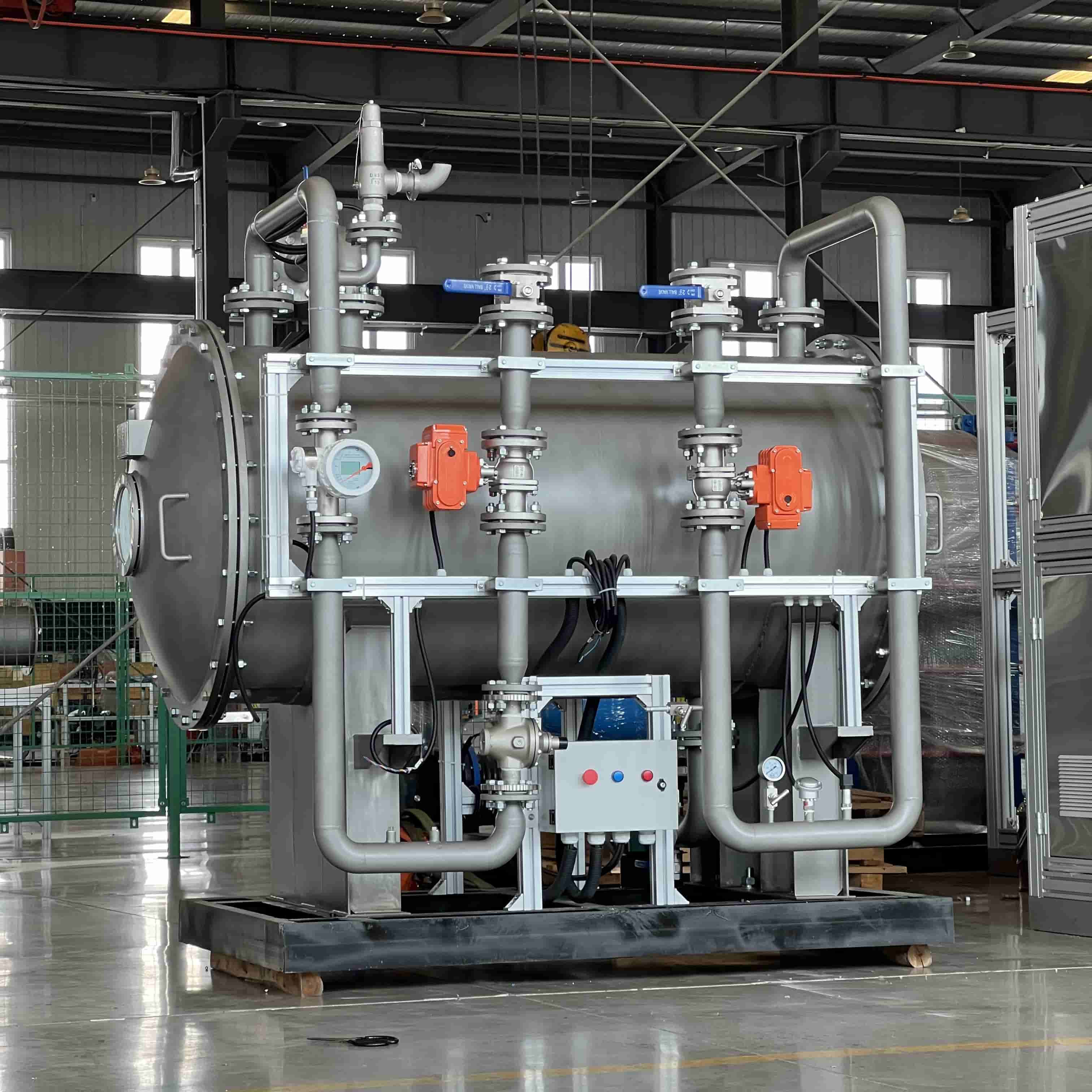

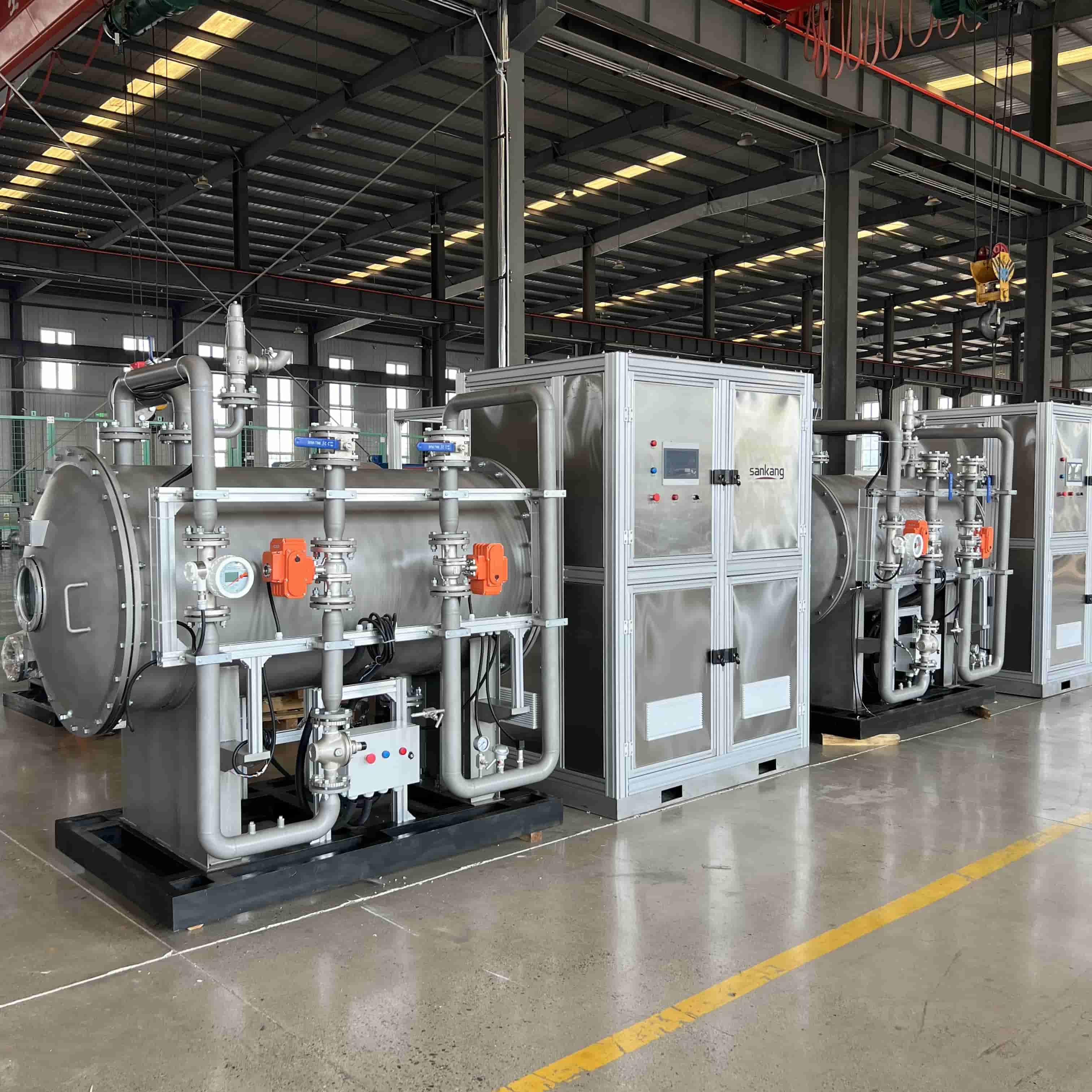

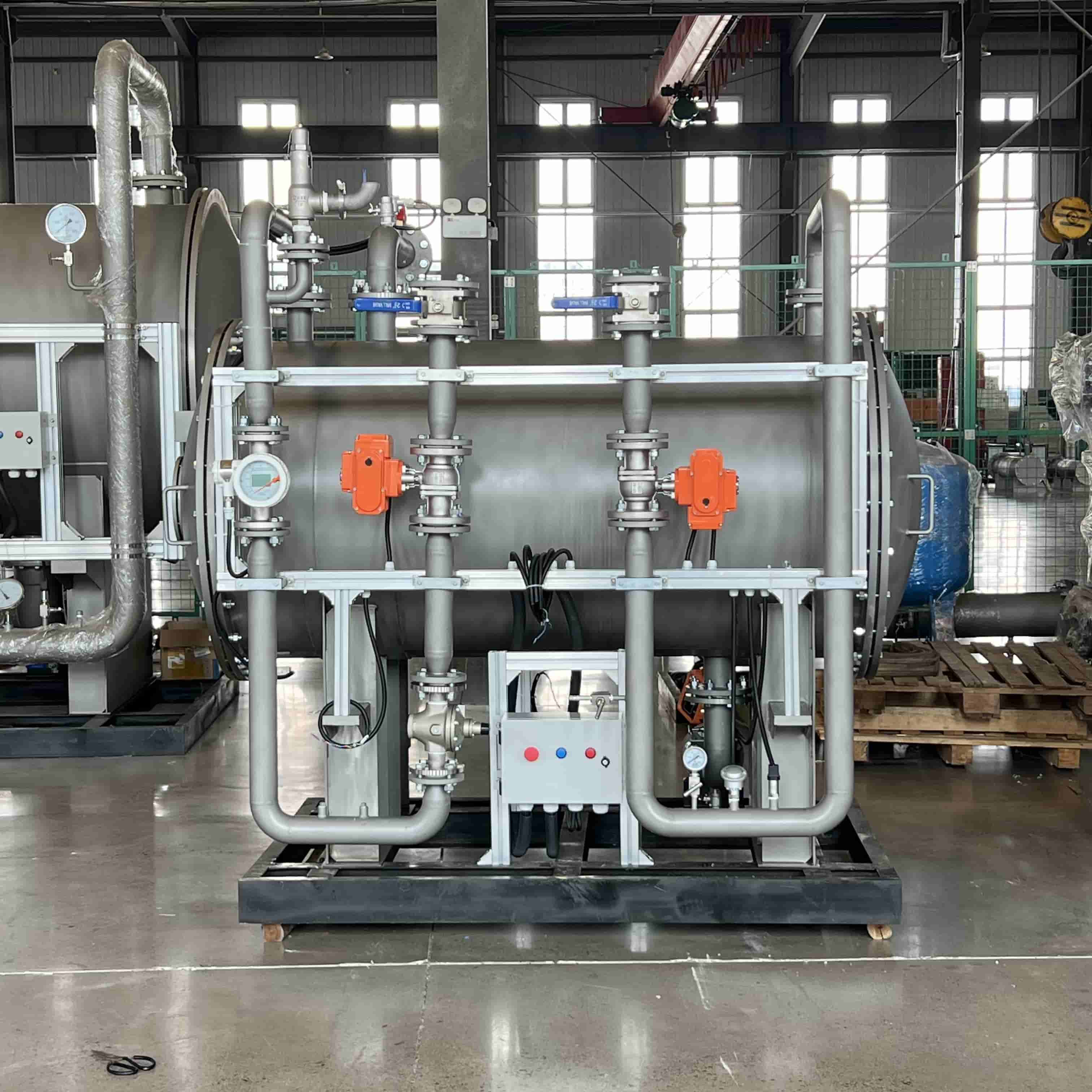

Sankang 20kg/h Ozone Generator
Product Advantages – SanKang 20kg/h Ozone Generator
High Efficiency & Energy Saving – Power consumption is only 7–9 kWh per kg of ozone produced-. The IGBT inverter high-frequency power supply improves ozone output by over 30% compared to traditional DC power supplies-.
High Ozone Concentration – Ozone concentration reaches 125–148 mg/L (8–10% wt)-, and can go up to 12% wt with liquid oxygen as the gas source – higher than most competitors (8–10% wt)-18-20.
Advanced DBD Discharge Technology – Uses internationally advanced DBD (dielectric barrier discharge) double-gap technology--4, with high borosilicate glass dielectric material featuring strong acid/alkali resistance and near-zero dielectric loss-20.
Reliable & Safe Design – Power supply and transformer adopt full air cooling mode to prevent condensation in humid environments-18. The ozone generation chamber is designed to Class I pressure vessel standards-18.
Smart Control System – Equipped with PLC automatic control system supporting remote monitoring and real-time parameter adjustment via touchscreen-.
Wide Application – Suitable for water treatment, air purification, food processing, flue gas denitrification, and more-2-.
Low Operating Costs – Stable performance, durable components, and low maintenance requirements ensure cost-effective long-term operation-19.
SanKang 20kg/h Ozone Generator – Product Details
1. Product Overview
The SanKang SK-CFG-20KE is a high-capacity industrial ozone generator designed for large-scale water treatment, flue gas denitrification, and industrial oxidation applications--2. With a production capacity of 20 kg/h, it delivers high-concentration ozone with low energy consumption and reliable performance-.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SK-CFG-20KE- |
| Ozone Production | 20 kg/h- |
| Ozone Concentration | 125–148 mg/L (8–10% wt); up to 12% wt with liquid oxygen--13 |
| Power Supply | AC 380V, 50Hz- |
| Power Consumption | 7.5 kW per kg of ozone- |
| Cooling Method | Water-cooled-1 |
| Cooling Water Flow | 10 m³/h- |
| Ozone Generator Dimensions | Approx. 4000 × 2000 × 1800 mm- |
| Gas Source | Oxygen- |
3. Core Features
DBD Discharge Technology – Uses internationally advanced dielectric barrier discharge (DBD) double-gap technology for high ozone output and stable operation-2-.
High Borosilicate Glass Dielectric – Strong acid/alkali resistance, dielectric constant >6, and near-zero dielectric loss-14.
IGBT High-Frequency Power Supply – Equipped with advanced IGBT inverter technology for high efficiency and low harmonic pollution-2.
Full Air-Cooled Power Supply & Transformer – Prevents condensation in humid environments and ensures electrical safety-13.
Class I Pressure Vessel Design – Ozone generation chamber meets pressure vessel standards for safety and reliability-13.
PLC Intelligent Control – Fully automated control system with touchscreen interface for easy operation and remote monitoring-.
Modular Design – Flexible configuration to meet different application requirements-.
4. Applications
Municipal and industrial water treatment
Flue gas desulfurization and denitrification-2
Industrial wastewater oxidation and decolorization
Air purification and odor control
Food processing and sterilization
