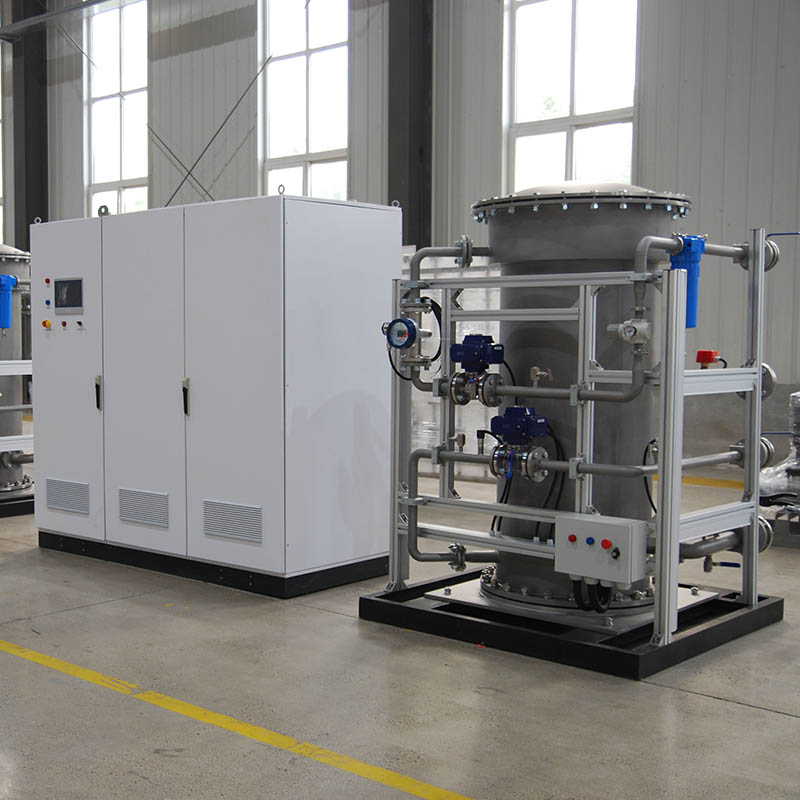

SanKang 12kg/h Ozone Generator
Differentiation between Sankang Ozone System and Other Products
(1) The Sankang ozone power supply and transformer adopt a fully air-cooled cooling mode, which can effectively avoid condensation of electrical components in coastal areas and high temperature and humidity environments in China, protect electrical safety, be more energy-efficient and environmentally friendly, and facilitate installation and maintenance.
(2) The Sankang ozone generation room is designed according to the Class I pressure vessel standard; The auxiliary pipeline design is simple and beautiful; The instruments and meters adopt well-known domestic brands; The flowmeter adopts the current mainstream product metal tube float flowmeter, with LCD display and easy operation; The valve adopts electric mode switch adjustment, which is easy to purchase and maintain, and the control is simple; The ozone equipment pipeline interface adopts on-site installation mode, which is convenient for users to use on site.
(3) Internally using fully insulated intelligent repair electrodes, with good stability, low voltage, maintenance free, safer, more reliable, and more advanced;
(4) The ozone concentration can reach 12wt% (with liquid oxygen as the gas source), which is higher than the ozone conversion rate of other ozone manufacturers (8-10wt%);
(5) The range of the ozone detection instrument is 0-200g/m ³.
Jinan Sankang promises a lifespan of 10 years for the ozone generator and one year of free maintenance for the entire machine. The service life of high borosilicate discharge tube is 10 years, and the discharge chamber is maintenance free for life under pure
oxygen gas source operation.
The ozone generator is installed horizontally and can be directly placed on the ground, installed on a foundation, or fixed on a rack; Due to its horizontal installation and easy inspection and maintenance by observing the sealing plate at the end.
The Sankang ozone generator consists of the following components:
(1) Gas source inlet and distribution chamber;
(2) High pressure distribution is installed in the distribution room at the inlet of the gas source to provide electrical energy for the ozone generation unit;
(3) Generator tank, with ozone discharge body installed inside;
(4) Ozone outlet collection room;
(5) The cooling water chamber is isolated between the generator tank and sealed stainless steel pipes welded at both ends, serving as the cooling water chamber.
(6) Cooling inlet and outlet pipelines;
(7) The discharge body is installed inside a stainless steel tube;
(8) The tank serves as a grounding electrode;
Part of the energy that cannot produce ozone is converted into heat energy and released, which must be carried away by sufficient flow of cooling water through the cooling water chamber. The generator is designed to work continuously for 24 hours, and each unit is pre installed with relevant instruments and valves. The ozone generator is fully integrated and installed. The pipes, valves, instruments, and cables are installed on the generator before leaving the factory, and the entire system has been tested in the factory.
Discharge chamber tank body
The discharge body is arranged in a honeycomb pattern inside, ensuring the normal, reliable, and effective operation of the discharge chamber as a whole.
Ozone power supply device
The electricity generated by the ozone generator for producing ozone is provided by the power cabinet of the ozone system. The power cabinet of the ozone generator converts conventional voltage and frequency into the frequency and voltage required to generate ozone. The high-voltage power output from the power cabinet is connected to the high-voltage electrode of the ozone generator gas source inlet chamber through a special high-voltage cable and a specially designed high-voltage connector.
Sankang's power cabinets apply the most advanced power and electronic technologies in the world today, and are constantly developing new technologies based on the development of global power electronics technology.
Sankang is a manufacturer that independently designs, produces, and assembles high-frequency power systems for ozone generators.
(1) High frequency, high-power, high-voltage power supply
Our company's high-frequency, high-power, and high-voltage power supply for ozone generators utilizes the world's most advanced power electronics technology and uses high-power electronic power devices. While meeting the general needs of customers, the extended design can flexibly meet their personalized and special industry requirements. At the same time, we use a high-end digital signal processor to accurately measure and control the power supply, enabling our company's ozone generator products to achieve advanced performance in high-frequency, high-power, and high-voltage power supply. This power supply has anti bounce performance beyond similar products and the ability to use harsh power grids, temperatures, and dust, with full protection function. It has extremely high security and reliable operation.
(2) Step up transformer
Used for transmitting power and matching the output of electronic power circuits with the generator, the requirements for its parameters are different from those of ordinary transformers. Due to the fact that the load not only varies greatly in numerical values throughout the entire working process, but also changes in its characteristics with different states during ignition or normal operation, it is required that the transformer has a certain leakage inductance to balance the above changes and protect electronic components. Leakage inductance can easily cause circuit losses and generate instantaneous high voltage during commutation, so its size needs to be selected according to the load situation. At the same time, the initial stage should have an appropriate number of taps to meet the impedance matching requirements during equipment adjustment. The power supply can only output maximum power when the impedance reflected by the load through the transformer to the primary is equal to the internal resistance of the power supply.
Parameters
1. Makers SANKANG
2. Country of origin China
3. Model SK-CFG-12KE
4. Design ozone production (kg/h) 12Kg/h
5. Ozone effluent concentration (mg/L) 125-148（8-10%wt）
6. Operating pressure (bar) 0.95, with a permissible fluctuation range of 5%
7. Electricity consumption for ozone generator operation (kW-h/kgO3 ) ≤7.5 kW-h/kgO3 at 25°C for cooling water
8. Generator installed power (kw) 84kw
9. Cooling water flow (m3 /h) 10m3 /h
10. Cooling water pressure (bar) 2bar
11. Ozone generator external dimensions (mm)
Ozone Generator Approx 1400×1400×2150mm
PSU 1600×1200×2200mm
12. Interface Size Air port DN50, Water Port DN65
13. Power supply 380V, 50Hz, 3ph
